genericInterfacePhy.h File Reference

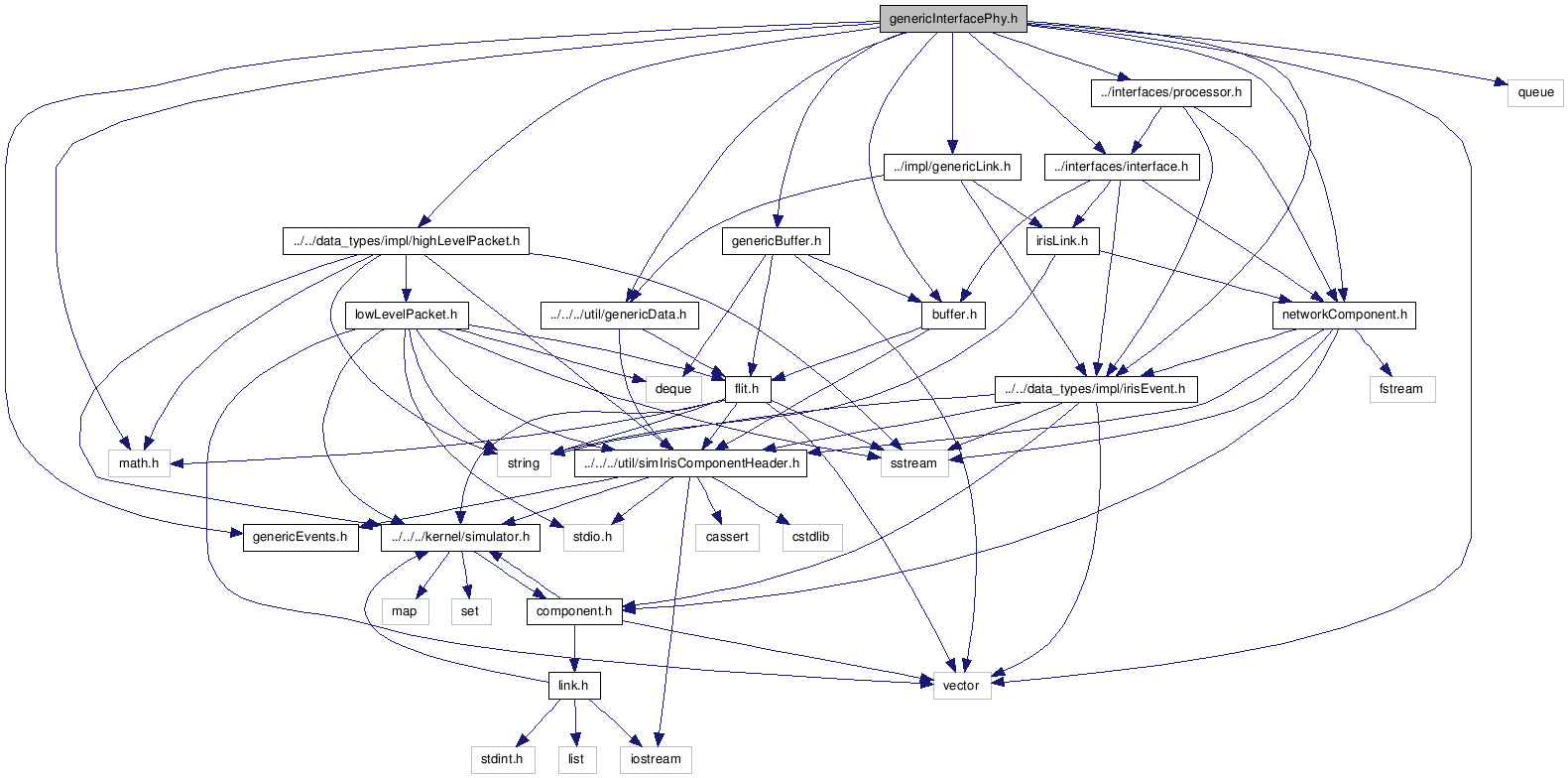

#include "../../data_types/impl/highLevelPacket.h"#include "../../data_types/impl/irisEvent.h"#include "../interfaces/interface.h"#include "../interfaces/networkComponent.h"#include "../interfaces/processor.h"#include "../interfaces/buffer.h"#include "../../../util/genericData.h"#include "../impl/genericLink.h"#include "genericEvents.h"#include "genericBuffer.h"#include <queue>#include <vector>#include <math.h>
Go to the source code of this file.
Classes | |
| class | GenericInterfacePhy |
Variables | |
| uint | do_two_stage_router |
| const bool | multiple_flit_in_buf |
| vector< uint > | mc_positions |
Variable Documentation
=====================================================================================
Filename: genericInterfacePhy.h
Description: This is a interface to be used in a physical network it has no idea of virtual channels and has a single output channel. It sends a new packet only if the output buffer is completely empty. (Wormhole). NOTE: it cannot handle multiple physical channels.
Version: 1.0 Created: 02/24/2010 02:04:22 PM Revision: none Compiler: gcc
Author: Mitchelle Rasquinha (), mitchelle.rasquinha@gatech.edu Company: Georgia Institute of Technology
=====================================================================================
=====================================================================================
Filename: genericInterfaceNB.h
Description: Component that connects a PE to a router. This converts a HLP t flits and sends them out on the respective channel. It is non-blocking in the sense that flits are sent as long as there are credits for the downstream buffer available. In cases where you need to check send a new packet only if the next buffer is completely empty this wont work.
Version: 1.0 Created: 02/24/2010 02:04:22 PM Revision: none Compiler: gcc
Author: Mitchelle Rasquinha (), mitchelle.rasquinha@gatech.edu Company: Georgia Institute of Technology
=====================================================================================
Definition at line 33 of file config_params.h.
| vector<uint> mc_positions |
Definition at line 63 of file config_params.h.
| const bool multiple_flit_in_buf |
Definition at line 62 of file config_params.h.
